Reanimate.GeoProjection

Contents

Projections
GeoJSON helpers

Description

This module provides functions for mapping the surface of a sphere on to a 2D plane. It also has convenience functions for loading GeoJSON data.

Synopsis

data Projection = Projection {
- projectionLabel :: String
- projectionForward :: !(LonLat -> XYCoord)
- projectionInverse :: !(XYCoord -> LonLat)
}
data XYCoord = XYCoord !Double !Double
data LonLat = LonLat !Double !Double
project :: Image PixelRGBA8 -> Projection -> Image PixelRGBA8
interpP :: Image PixelRGBA8 -> Projection -> Projection -> Double -> Image PixelRGBA8
interpBBP :: Image PixelRGBA8 -> Projection -> Projection -> (Double, Double, Double, Double) -> (Double, Double, Double, Double) -> Double -> Image PixelRGBA8
mergeP :: Projection -> Projection -> Double -> Projection
isValidP :: Projection -> Bool
scaleP :: Double -> Double -> Projection -> Projection
flipYAxisP :: Projection -> Projection
moveBottomP :: Double -> Projection -> Projection
moveTopP :: Double -> Projection -> Projection
equirectangularP :: Projection
mercatorP :: Projection
mollweideP :: Projection
hammerP :: Projection
cylindricalEqualAreaP :: Double -> Projection
lambertP :: Projection
bottomleyP :: Double -> Projection
sinusoidalP :: Projection
wernerP :: Projection
bonneP :: Double -> Projection
orthoP :: LonLat -> Projection
cassiniP :: Projection
augustP :: Projection
collignonP :: Projection
eckert1P :: Projection
eckert3P :: Projection
eckert5P :: Projection
faheyP :: Projection
foucautP :: Projection
lagrangeP :: Projection
drawFeatureCollection :: GeoFeatureCollection a -> (a -> SVG -> SVG) -> SVG
loadFeatureCollection :: FromJSON a => FilePath -> (a -> SVG -> SVG) -> SVG
applyProjection :: Projection -> SVG -> SVG
applyProjection' :: Double -> Projection -> SVG -> SVG
renderGeometry :: GeospatialGeometry -> SVG

Documentation

data Projection Source #

Projections are named bi-directional mappings between a sphere and a 2D plane.

Constructors

Projection
Fields projectionLabel :: String Name of the projection. projectionForward :: !(LonLat -> XYCoord) Mapping from longitude and latitude on a sphere to XY coordinates on a 2D plane. projectionInverse :: !(XYCoord -> LonLat) Mapping from XY coordinates on a 2D plane to longitude and latitude on a sphere.

data XYCoord Source #

XY coordinates on a 2D plane. Valid ranges go from 0 to 1, inclusive.

Constructors

XYCoord !Double !Double

Instances

Eq XYCoord Source #
Instance details Defined in Reanimate.GeoProjection Methods (==) :: XYCoord -> XYCoord -> Bool # (/=) :: XYCoord -> XYCoord -> Bool #
Ord XYCoord Source #
Instance details Defined in Reanimate.GeoProjection Methods compare :: XYCoord -> XYCoord -> Ordering # (<) :: XYCoord -> XYCoord -> Bool # (<=) :: XYCoord -> XYCoord -> Bool # (>) :: XYCoord -> XYCoord -> Bool # (>=) :: XYCoord -> XYCoord -> Bool # max :: XYCoord -> XYCoord -> XYCoord # min :: XYCoord -> XYCoord -> XYCoord #
Read XYCoord Source #
Instance details Defined in Reanimate.GeoProjection Methods readsPrec :: Int -> ReadS XYCoord # readList :: ReadS [XYCoord] # readPrec :: ReadPrec XYCoord # readListPrec :: ReadPrec [XYCoord] #
Show XYCoord Source #
Instance details Defined in Reanimate.GeoProjection Methods showsPrec :: Int -> XYCoord -> ShowS # show :: XYCoord -> String # showList :: [XYCoord] -> ShowS #

data LonLat Source #

Longitude and latitude. Valid range for longitude is -pi to +pi. Valid range for latitude is -pi2 to +pi2.

Constructors

LonLat !Double !Double

Instances

Eq LonLat Source #
Instance details Defined in Reanimate.GeoProjection Methods (==) :: LonLat -> LonLat -> Bool # (/=) :: LonLat -> LonLat -> Bool #
Ord LonLat Source #
Instance details Defined in Reanimate.GeoProjection Methods compare :: LonLat -> LonLat -> Ordering # (<) :: LonLat -> LonLat -> Bool # (<=) :: LonLat -> LonLat -> Bool # (>) :: LonLat -> LonLat -> Bool # (>=) :: LonLat -> LonLat -> Bool # max :: LonLat -> LonLat -> LonLat # min :: LonLat -> LonLat -> LonLat #
Read LonLat Source #
Instance details Defined in Reanimate.GeoProjection Methods readsPrec :: Int -> ReadS LonLat # readList :: ReadS [LonLat] # readPrec :: ReadPrec LonLat # readListPrec :: ReadPrec [LonLat] #
Show LonLat Source #
Instance details Defined in Reanimate.GeoProjection Methods showsPrec :: Int -> LonLat -> ShowS # show :: LonLat -> String # showList :: [LonLat] -> ShowS #
Hashable LonLat Source #
Instance details Defined in Reanimate.GeoProjection Methods hashWithSalt :: Int -> LonLat -> Int # hash :: LonLat -> Int #

project :: Image PixelRGBA8 -> Projection -> Image PixelRGBA8 Source #

Apply on an image in equirectangular format. The source image therfore must have an aspect ratio of 2:1.

interpP :: Image PixelRGBA8 -> Projection -> Projection -> Double -> Image PixelRGBA8 Source #

Interpolate between two projections and apply the result to an image in equirectangular format. The source image must have an aspect ratio of 2:1.

interpBBP :: Image PixelRGBA8 -> Projection -> Projection -> (Double, Double, Double, Double) -> (Double, Double, Double, Double) -> Double -> Image PixelRGBA8 Source #

Interpolate between two projections and apply the result to an image in equirectangular format. The source image must have an aspect ratio of 2:1. Only the areas inside of the two bounding boxes (applying to the source and target projection, respectively) are mapped. Pixels outside of these bounding-boxes are undefined.

mergeP :: Projection -> Projection -> Double -> Projection Source #

Attempt to smoothly interpolate two projections. The result may not be continuous and interpP may give prettier results.

isValidP :: Projection -> Bool Source #

Returns True iff a projection is consistent and complete.

scaleP :: Double -> Double -> Projection -> Projection Source #

Scale X and Y axis of projection.

flipYAxisP :: Projection -> Projection Source #

Invert the Y axis of projection.

moveBottomP :: Double -> Projection -> Projection Source #

Translate the lower-most point of a projection by an offset.

moveTopP :: Double -> Projection -> Projection Source #

Translate the top-most point of a projection by an offset.

Projections

equirectangularP :: Projection Source #

mercatorP :: Projection Source #

mollweideP :: Projection Source #

hammerP :: Projection Source #

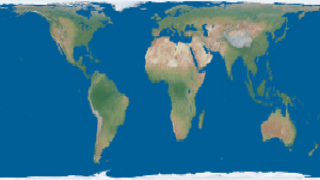

cylindricalEqualAreaP :: Double -> Projection Source #

lambertP :: Projection Source #

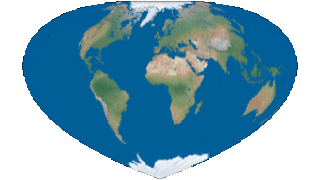

bottomleyP :: Double -> Projection Source #

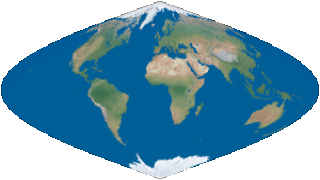

sinusoidalP :: Projection Source #

wernerP :: Projection Source #

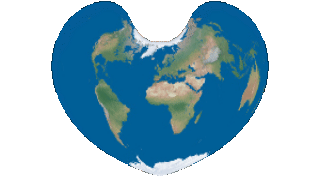

bonneP :: Double -> Projection Source #

orthoP :: LonLat -> Projection Source #

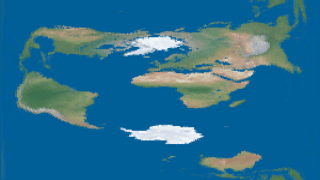

cassiniP :: Projection Source #

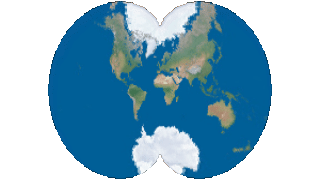

augustP :: Projection Source #

collignonP :: Projection Source #

eckert1P :: Projection Source #

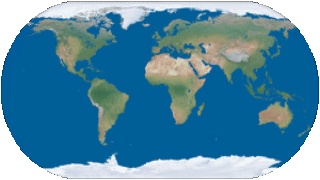

eckert3P :: Projection Source #

eckert5P :: Projection Source #

faheyP :: Projection Source #

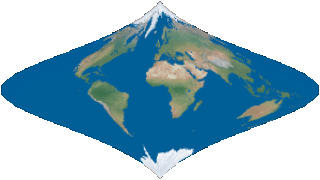

foucautP :: Projection Source #

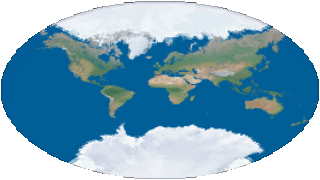

lagrangeP :: Projection Source #

GeoJSON helpers

drawFeatureCollection :: GeoFeatureCollection a -> (a -> SVG -> SVG) -> SVG Source #

Map for all features and render the geometry.

loadFeatureCollection :: FromJSON a => FilePath -> (a -> SVG -> SVG) -> SVG Source #

Load GeoJSON from a filepath and render the geometry.

applyProjection :: Projection -> SVG -> SVG Source #

Apply a projection to an SVG image. This is a lossy transformation but the default tolerance is low enough that inaccuracies should not be visible.

applyProjection' :: Double -> Projection -> SVG -> SVG Source #

Apply a projection to an SVG image with a specified tolerance. Projections may turn straight lines into disjointed curves and the tolerance argument determined the accuracy of this transformation.

renderGeometry :: GeospatialGeometry -> SVG Source #

Render GeoJSON geometry as SVG.
