plot-light
provides functionality for rendering vector
graphics in SVG format. It is geared in particular towards scientific plotting, and it is termed "light" because it only requires a few common Haskell dependencies and no external libraries.
Usage
To incorporate this library in your projects you just need import Graphics.Rendering.Plot.Light
. If GHC complains of name collisions you must import the module in "qualified" form.
Examples
If you wish to try out the examples in this page, you will need to have these import statements as well :
import Text.Blaze.Svg.Renderer.String (renderSvg) import qualified Data.Colour.Names as C import qualified Data.Text.IO as T (readFile, writeFile) import qualified Data.Text as T
1. Heatmap plot of a 2D function

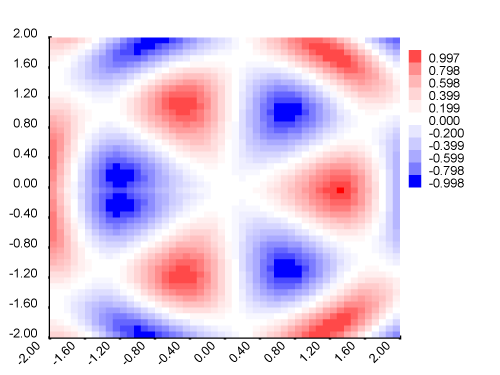

This example renders the function
\[ {f(x, y) = \cos(\pi \theta) \sin( \rho^2) } \] where \( \rho^2 = x^2 + y^2 \) and \( \theta = \arctan(y/x) \).
xPlot = 400 yPlot = 300 fnameOut = "heatmap.svg"
fdat = FigureData xPlot yPlot 0.1 0.8 0.1 0.9 10
palette0 = palette [C.red, C.white, C.blue] 15
plotFun2ex1 = do let p1 = Point (-2) (-2) p2 = Point 2 2 frame = mkFrame p1 p2 nx = 50 ny = 50 f x y = cos ( pi * theta ) * sin r where r = x'**2 + y'**2 theta = atan2 y' x' (x', y') = (fromRational x, fromRational y) lps = plotFun2 f $ meshGrid frame nx ny vmin = minimum $ _lplabel <$> lps vmax = maximum $ _lplabel <$> lps pixels = heatmap' fdat palette0 frame nx ny lps cbar = colourBar fdat palette0 10 vmin vmax 10 TopRight 100 svg_t = svgHeader xPlot yPlot $ do axes fdat frame 2 C.black 10 10 pixels cbar T.writeFile fnameOut $ T.pack $ renderSvg svg_t
This example demonstrates how to plot a 2D scalar function and write the output to SVG file.
First, we define a FigureData
object (which holds the SVG figure dimensions and parameters for the white margin around the rendering canvas) and a palette
.
Afterwards we declare a Frame
that bounds the rendering canvas using mkFrame
. This is discretized in nx
by ny
pixels with meshGrid
, and the function f
is computed at the intersections of the mesh with plotFun2
.
The axes
function adds labeled axes to the figure; the user just needs to specify stroke width and color and how many ticks to display.
The data to be plotted (represented in this case as a list of LabeledPoint
s, in which the "label" carries the function value) are then mapped onto the given colour palette and drawn to the SVG canvas as a heatmap'
, i.e. a mesh of filled rectangles (Caution: do not exceed resolutions of ~ hundred pixels per side).
Next, we create the legend; in this case this is a colourBar
element that requires the data bounds vmin
, vmax
.
As a last step, the SVG content is wrapped in the appropriate markdown by svgHeader
and written to file.
2. Scatter plot of 3D data
This example shows how to plot a collection of labelled points in the plane. Each sample row is represented by a LabeledPoint
, in which the label is a scalar quantity.
The scatterLP
function renders each data row as a glyph, by modifying a ScatterPointData
record of default values via four functions that control the glyph size, contour line thickness, colour and opacity. This functionality can be exploited in creative ways to achieve effective infographics.
xPlot = 400 yPlot = 300 fnameOut = "scatter.svg"
fdat = FigureData xPlot yPlot 0.1 0.8 0.1 0.9 10
dats = zipWith LabeledPoint p_ l_ where l_ = [-5, -4 .. ] p_ = zipWith Point [46,30,4,7,73,12,23,90,34,24,5,6,12,3,55,61] [20,35,43,23,20,1,23,8,11,17,25,4,5,26, 30]
spdata = ScatterPointData Plus 3 3 C.black 0.8
main :: IO () main = do let frameTo = frameFromFigData fdat frameFrom = frameFromPoints $ _lp <$> dats vmin = minimum $ _lplabel <$> dats vmax = maximum $ _lplabel <$> dats f l sz = 15 / (1 + exp(- (0.3 * x)) ) where x = l + sz g l w = w * (1 + l / (1 + abs l)) h l col = C.blend l' C.red col where l' = (l - vmin)/(vmax - vmin) i l alp = alp * ( 1 + l / (1 + abs l)) dats' = moveLabeledPointBwFrames frameFrom frameTo False True <$> dats svg_t = svgHeader xPlot yPlot $ do axes fdat frameFrom 2 C.black 10 10 scatterLP f g h i spdata dats' scatterLPBar fdat 50 vmin vmax 3 TopRight 100 f g h i spdata T.writeFile fnameOut $ T.pack $ renderSvg svg_t
- plotFun :: Functor f => (t -> t) -> f (Point t) -> f (Point t)
- data Plot1DOptions a = Plot1DOptions {}
- heatmap :: FigureData Rational -> [Colour Double] -> [[Scientific]] -> Svg
- heatmap' :: (Foldable f, Functor f, Show a, RealFrac a, RealFrac t) => FigureData a -> [Colour Double] -> Frame a -> a -> a -> f (LabeledPoint t a) -> Svg
- plotFun2 :: Functor f => (t -> t -> l) -> f (Point t) -> f (LabeledPoint l t)
- colourBar :: (RealFrac t, RealFrac a, Show a, Enum t, Floating a) => FigureData (Ratio Integer) -> [Colour Double] -> a -> t -> t -> Int -> LegendPosition_ -> a -> Svg
- scatter :: (Foldable t, Show a, RealFrac a) => ScatterPointData a -> t (Point a) -> Svg
- scatterLP :: (Foldable t, RealFrac a, Show a) => (l -> b -> a) -> (l -> b -> a) -> (l -> Colour Double -> Colour Double) -> (l -> b -> a) -> ScatterPointData b -> t (LabeledPoint l a) -> Svg
- scatterLPBar :: (RealFrac t, Enum t, RealFrac b, Show b) => FigureData b -> b -> t -> t -> Int -> LegendPosition_ -> b -> (t -> b -> b) -> (t -> b -> b) -> (t -> Colour Double -> Colour Double) -> (t -> b -> b) -> ScatterPointData b -> Svg
- data ScatterPointData a = ScatterPointData {
- spGlyphShape :: GlyphShape_
- spSize :: a
- spStrokeWidth :: a
- spColour :: Colour Double
- spAlpha :: a
- data GlyphShape_
- rect :: Real a => a -> a -> ShapeCol a -> Point a -> Svg
- rectCentered :: (Show a, RealFrac a) => a -> a -> ShapeCol a -> Point a -> Svg
- squareCentered :: (Show a, RealFrac a) => a -> ShapeCol a -> Point a -> Svg
- circle :: (Real a1, Real a) => a -> ShapeCol a -> Point a1 -> Svg
- line :: (Show a, RealFrac a) => Point a -> Point a -> a -> LineStroke_ a -> Colour Double -> Svg
- text :: (Show a, Real a) => a -> Int -> Colour Double -> TextAnchor_ -> Text -> V2 a -> Point a -> Svg
- data TextAnchor_
- polyline :: (Foldable t, Show a1, Show a, RealFrac a, RealFrac a1) => a1 -> LineStroke_ a -> StrokeLineJoin_ -> Colour Double -> t (Point a) -> Svg
- filledPolyline :: (Foldable t, Show a, Real o) => Colour Double -> o -> t (Point a) -> Svg
- data StrokeLineJoin_
- pixel :: (Show a, RealFrac a) => [Colour Double] -> a -> a -> Scientific -> Scientific -> LabeledPoint Scientific a -> Svg
- pixel' :: (Show a, RealFrac a, RealFrac t) => [Colour Double] -> a -> a -> t -> t -> LabeledPoint t a -> Svg
- filledBand :: (Foldable t, Real o, Show a) => Colour Double -> o -> (l -> a) -> (l -> a) -> t (LabeledPoint l a) -> Svg
- candlestick :: (Show a, RealFrac a) => (a -> a -> Bool) -> (l -> a) -> (l -> a) -> (l -> a) -> (l -> a) -> a -> a -> ShapeCol a -> ShapeCol a -> Colour Double -> LabeledPoint l a -> Svg
- histogram :: Foldable v => ShapeCol Double -> Int -> v Double -> Svg
- axes :: (Show a, RealFrac a) => FigureData a -> Frame a -> a -> Colour Double -> Int -> Int -> Svg
- toPlot :: (Functor t, Foldable t, Show a, RealFrac a) => FigureData a -> (l -> Text) -> (l -> Text) -> a -> a -> a -> Colour Double -> Maybe (t (LabeledPoint l a)) -> Maybe (t (LabeledPoint l a)) -> (t (LabeledPoint l a) -> Svg) -> t (LabeledPoint l a) -> Svg
- data FigureData a = FigureData {
- figWidth :: a
- figHeight :: a
- figLeftMFrac :: a
- figRightMFrac :: a
- figTopMFrac :: a
- figBottomMFrac :: a
- figLabelFontSize :: Int
- data LineStroke_ a
- = Continuous
- | Dashed [a]
- data LegendPosition_
- frameFromPoints :: (Ord a, Foldable t, Functor t) => t (Point a) -> Frame a
- frameFromFigData :: Num a => FigureData a -> Frame a
- mkFrame :: Point a -> Point a -> Frame a
- mkFrameOrigin :: Num a => a -> a -> Frame a
- width :: Num a => Frame a -> a
- height :: Num a => Frame a -> a
- figFWidth :: Num a => FigureData a -> a
- figFHeight :: Num a => FigureData a -> a
- blendTwo :: Colour Double -> Colour Double -> Int -> [Colour Double]
- palette :: [Colour Double] -> Int -> [Colour Double]
- pickColour :: (RealFrac t, Num a) => [Colour Double] -> t -> t -> t -> ShapeCol a
- data ShapeCol a
- data Col a = Col {}
- shapeColNoBorder :: Colour Double -> a -> ShapeCol a
- shapeColNoFill :: Colour Double -> a -> a -> ShapeCol a
- shapeColBoth :: Colour Double -> Colour Double -> a -> a -> ShapeCol a
- fromTick :: Tick -> Rational
- toTick :: Rational -> Tick
- svgHeader :: Real a => a -> a -> Svg -> Svg
- translateSvg :: Show a => Point a -> Svg -> Svg
- toSvgFrame :: Fractional a => Frame a -> Frame a -> Bool -> Point a -> Point a
- toSvgFrameLP :: Fractional a => Frame a -> Frame a -> Bool -> LabeledPoint l a -> LabeledPoint l a
- data Frame a = Frame {}
- data Point a = Point {}
- data LabeledPoint l a = LabeledPoint {}
- labelPoint :: (Point a -> l) -> Point a -> LabeledPoint l a
- mapLabel :: (l1 -> l2) -> LabeledPoint l1 a -> LabeledPoint l2 a
- data Axis
- meshGrid :: (Enum a, RealFrac a) => Frame a -> Int -> Int -> [Point a]
- toFloat :: Scientific -> Float
- wholeDecimal :: (Integral a, RealFrac b) => b -> (a, b)
Plot types
1D plot
data Plot1DOptions a Source #
Plot1DOptions | |
|
Eq a => Eq (Plot1DOptions a) Source # | |
Show a => Show (Plot1DOptions a) Source # | |
Heatmap
:: FigureData Rational | Figure data |
-> [Colour Double] | Colour palette |
-> [[Scientific]] | Data |
-> Svg |
:: (Foldable f, Functor f, Show a, RealFrac a, RealFrac t) | |
=> FigureData a | Figure data |
-> [Colour Double] | Colour palette |
-> Frame a | Frame containing the data |
-> a | Number of points along x axis |
-> a | " y axis |
-> f (LabeledPoint t a) | Data |
-> Svg |
heatmap'
renders one SVG pixel for every LabeledPoint
supplied as input. The LabeledPoint
s must be bounded by the Frame
.
plotFun2 :: Functor f => (t -> t -> l) -> f (Point t) -> f (LabeledPoint l t) Source #
Plot a scalar function f
of points in the plane (i.e. \(f : \mathbf{R}^2 \rightarrow \mathbf{R}\))
:: (RealFrac t, RealFrac a, Show a, Enum t, Floating a) | |
=> FigureData (Ratio Integer) | Figure data |
-> [Colour Double] | Palette |
-> a | Width |
-> t | Value range minimum |
-> t | Value range maximum |
-> Int | Number of distinct values |
-> LegendPosition_ | Legend position in the figure |
-> a | Colour bar length |
-> Svg |
A colour bar legend, to be used within heatmap
-style plots.
Scatter
scatter :: (Foldable t, Show a, RealFrac a) => ScatterPointData a -> t (Point a) -> Svg Source #
Scatter plot
Every point in the plot has the same parameters, as declared in the ScatterPointData
record
:: (Foldable t, RealFrac a, Show a) | |
=> (l -> b -> a) | Modifies the glyph size |
-> (l -> b -> a) | Modifies the glyph stroke width |
-> (l -> Colour Double -> Colour Double) | Modifies the glyph colour |
-> (l -> b -> a) | Modifies the glyph opacity |
-> ScatterPointData b | Glyph style defaults |
-> t (LabeledPoint l a) | Data |
-> Svg |
Parametric scatter plot
The parameters of every point in the scatter plot are modulated according to the label, using the three functions.
This can be used to produce rich infographics, in which e.g. the colour and size of the glyphs carry additional information.
:: (RealFrac t, Enum t, RealFrac b, Show b) | |
=> FigureData b | |
-> b | Legend width |
-> t | Data value lower bound |
-> t | Data value upper bound |
-> Int | Number of legend entries |
-> LegendPosition_ | Legend position in the figure |
-> b | Legend length |
-> (t -> b -> b) | Modifies the glyph size |
-> (t -> b -> b) | Modifies the glyph stroke width |
-> (t -> Colour Double -> Colour Double) | Modifies the glyph colour |
-> (t -> b -> b) | Modifies the glyph opacity |
-> ScatterPointData b | Glyph style defaults |
-> Svg |
data ScatterPointData a Source #
Parameters for a scatterplot glyph
ScatterPointData | |
|
Eq a => Eq (ScatterPointData a) Source # | |
Show a => Show (ScatterPointData a) Source # | |
data GlyphShape_ Source #
Glyph shape
Plot elements
Geometric primitives
Rectangle, square
:: Real a | |
=> a | Width |
-> a | Stroke width |
-> ShapeCol a | Colour and alpha information |
-> Point a | Corner point coordinates |
-> Svg |
A rectangle, defined by its anchor point coordinates and side lengths
> putStrLn $ renderSvg $ rect 50 60 (shapeColNoBorder C.blue 0.5) (Point 100 30) <rect x="100.0" y="30.0" width="50.0" height="60.0" fill-opacity="0.5" fill="#0000ff" stroke="none" />
:: (Show a, RealFrac a) | |
=> a | Width |
-> a | Height |
-> ShapeCol a | Colour and alpha information |
-> Point a | Center coordinates |
-> Svg |
A rectangle, defined by its center coordinates and side lengths
> putStrLn $ renderSvg $ rectCentered 15 30 (shapeColBoth C.blue C.red 1 5) (Point 20 30) <rect x="12.5" y="15.0" width="15.0" height="30.0" fill-opacity="1.0" fill="#0000ff" stroke-opacity="1.0" stroke="#ff0000" stroke-width="5.0" />
:: (Show a, RealFrac a) | |
=> a | Side length |
-> ShapeCol a | Colour and alpha information |
-> Point a | Center coordinates |
-> Svg |
A square, defined by its center coordinates and side length
> putStrLn $ renderSvg $ squareCentered 30 (shapeColBoth C.blue C.red 1 5) (Point 20 30) <rect x="5.0" y="15.0" width="30.0" height="30.0" fill-opacity="1.0" fill="#0000ff" stroke-opacity="1.0" stroke="#ff0000" stroke-width="5.0" />
Circle
A circle
> putStrLn $ renderSvg $ circle 15 (shapeColBoth C.red C.blue 1 5) (Point 10 20) <circle cx="10.0" cy="20.0" r="15.0" fill-opacity="1.0" fill="#ff0000" stroke-opacity="1.0" stroke="#0000ff" stroke-width="5.0" />
Line
:: (Show a, RealFrac a) | |
=> Point a | First point |
-> Point a | Second point |
-> a | Stroke width |
-> LineStroke_ a | Stroke type |
-> Colour Double | Stroke colour |
-> Svg |
Line segment between two Point
s
> putStrLn $ renderSvg $ line (Point 0 0) (Point 1 1) 0.1 Continuous C.blueviolet <line x1="0.0" y1="0.0" x2="1.0" y2="1.0" stroke="#8a2be2" stroke-width="0.1" />
> putStrLn $ renderSvg (line (Point 0 0) (Point 1 1) 0.1 (Dashed [0.2, 0.3]) C.blueviolet) <line x1="0.0" y1="0.0" x2="1.0" y2="1.0" stroke="#8a2be2" stroke-width="0.1" stroke-dasharray="0.2, 0.3" />
Text
:: (Show a, Real a) | |
=> a | Rotation angle of the textbox |
-> Int | Font size |
-> Colour Double | Font colour |
-> TextAnchor_ | How to anchor the text to the point |
-> Text | Text |
-> V2 a | Displacement w.r.t. rotated textbox |
-> Point a | Initial position of the text box (i.e. before rotation and displacement) |
-> Svg |
text
renders text onto the SVG canvas
Conventions
The Point
argument p
refers to the lower-left corner of the text box.
The text box can be rotated by rot
degrees around p
and then anchored at either its beginning, middle or end to p
with the TextAnchor_
flag.
The user can supply an additional V2
displacement which will be applied after rotation and anchoring and refers to the rotated text box frame.
> putStrLn $ renderSvg $ text (-45) C.green TAEnd "blah" (V2 (- 10) 0) (Point 250 0) <text x="-10.0" y="0.0" transform="translate(250.0 0.0)rotate(-45.0)" fill="#008000" text-anchor="end">blah</text>
data TextAnchor_ Source #
Specify at which end should the text be anchored to its current point
Polyline
:: (Foldable t, Show a1, Show a, RealFrac a, RealFrac a1) | |
=> a1 | Stroke width |
-> LineStroke_ a | Stroke type |
-> StrokeLineJoin_ | Stroke join type |
-> Colour Double | Stroke colour |
-> t (Point a) | Data |
-> Svg |
Polyline (piecewise straight line)
> putStrLn $ renderSvg (polyline [Point 100 50, Point 120 20, Point 230 50] 4 (Dashed [3, 5]) Round C.blueviolet) <polyline points="100.0,50.0 120.0,20.0 230.0,50.0" fill="none" stroke="#8a2be2" stroke-width="4.0" stroke-linejoin="round" stroke-dasharray="3.0, 5.0" />
:: (Foldable t, Show a, Real o) | |
=> Colour Double | Fill colour |
-> o | Fill opacity |
-> t (Point a) | Contour point coordinates |
-> Svg |
A filled polyline
> putStrLn $ renderSvg $ filledPolyline C.coral 0.3 [(Point 0 1), (Point 10 40), Point 34 50, Point 30 5] <polyline points="0,1 10,40 34,50 30,5" fill="#ff7f50" fill-opacity="0.3" />
data StrokeLineJoin_ Source #
Specify the type of connection between line segments
Pixel
:: (Show a, RealFrac a) | |
=> [Colour Double] | Palette |
-> a | Width |
-> a | Height |
-> Scientific | Function minimum |
-> Scientific | Function maximum |
-> LabeledPoint Scientific a | |
-> Svg |
A pixel
is a filled square shape used for populating heatmap
plots , coloured from a palette
:: (Show a, RealFrac a, RealFrac t) | |
=> [Colour Double] | Palette |
-> a | Width |
-> a | Height |
-> t | Function minimum |
-> t | Function maximum |
-> LabeledPoint t a | |
-> Svg |
A pixel'
is a filled square shape used for populating heatmap
plots , coloured from a palette
Composite plot elements
:: (Foldable t, Real o, Show a) | |
=> Colour Double | Fill colour |
-> o | Fill opacity |
-> (l -> a) | Band maximum value |
-> (l -> a) | Band minimum value |
-> t (LabeledPoint l a) | Centerline points |
-> Svg |
A filled band of colour, given the coordinates of its center line
This element can be used to overlay uncertainty ranges (e.g. the first standard deviation) associated with a given data series.
:: (Show a, RealFrac a) | |
=> (a -> a -> Bool) | If True, fill the box with the first colour, otherwise with the second |
-> (l -> a) | Box maximum value |
-> (l -> a) | Box minimum value |
-> (l -> a) | Line maximum value |
-> (l -> a) | Line minimum value |
-> a | Box width |
-> a | Stroke width |
-> ShapeCol a | First box colour |
-> ShapeCol a | Second box colour |
-> Colour Double | Line stroke colour |
-> LabeledPoint l a | Data point |
-> Svg |
A candlestick
glyph for time series plots. This is a type of box glyph, commonly used in plotting financial time series.
Some financial market quantities such as currency exchange rates are aggregated over some time period (e.g. a day) and summarized by various quantities, for example opening and closing rates, as well as maximum and minimum over the period.
By convention, the candlestick
colour depends on the derivative sign of one such quantity (e.g. it is green if the market closes higher than it opened, and red otherwise).
Plot utilities
axes :: (Show a, RealFrac a) => FigureData a -> Frame a -> a -> Colour Double -> Int -> Int -> Svg Source #
A pair of Cartesian axes
:: (Functor t, Foldable t, Show a, RealFrac a) | |
=> FigureData a | |
-> (l -> Text) | X tick label |
-> (l -> Text) | Y tick label |
-> a | X label rotation angle |
-> a | Y label rotation angle |
-> a | Stroke width |
-> Colour Double | Stroke colour |
-> Maybe (t (LabeledPoint l a)) | X axis labels |
-> Maybe (t (LabeledPoint l a)) | Y axis labels |
-> (t (LabeledPoint l a) -> Svg) | Data rendering function |
-> t (LabeledPoint l a) | Data |
-> Svg |
toPlot
performs a number of related operations:
- Maps the dataset to the figure frame
- Renders the X, Y axes
- Renders the transformed dataset onto the newly created plot canvas
data FigureData a Source #
Figure data
FigureData | |
|
Functor FigureData Source # | |
Eq a => Eq (FigureData a) Source # | |
Show a => Show (FigureData a) Source # | |
Generic (FigureData a) Source # | |
type Rep (FigureData a) Source # | |
Element attributes
data LineStroke_ a Source #
Specify a continuous or dashed stroke
Continuous | |
Dashed [a] |
Eq a => Eq (LineStroke_ a) Source # | |
Show a => Show (LineStroke_ a) Source # | |
Generic (LineStroke_ a) Source # | |
type Rep (LineStroke_ a) Source # | |
data LegendPosition_ Source #
Operations on frames
frameFromFigData :: Num a => FigureData a -> Frame a Source #
mkFrameOrigin :: Num a => a -> a -> Frame a Source #
Build a frame rooted at the origin (0, 0)
figFWidth :: Num a => FigureData a -> a Source #
figFHeight :: Num a => FigureData a -> a Source #
Colour utilities
blendTwo :: Colour Double -> Colour Double -> Int -> [Colour Double] Source #
`blendTwo c1 c2 n` creates a palette of n
intermediate colours, interpolated linearly between c1
and c2
.
palette :: [Colour Double] -> Int -> [Colour Double] Source #
`palette cs n` blends linearly a list of colours cs
, by generating n
intermediate colours between each consecutive pair.
pickColour :: (RealFrac t, Num a) => [Colour Double] -> t -> t -> t -> ShapeCol a Source #
Pick a colour from a list, assumed to be a palette mapped onto a compact numerical interval.
ShapeCol-related
A shape can either be only filled, or only contoured, or both
A Col is both a Colour
and an alpha (opacity) coefficient
shapeColNoBorder :: Colour Double -> a -> ShapeCol a Source #
Construct a ShapeCol
for shapes that have no border stroke (i.e. have only the fill colour)
shapeColNoFill :: Colour Double -> a -> a -> ShapeCol a Source #
Construct a ShapeCol
for shapes that have no fill colour (i.e. have only the stroke colour)
Construct a ShapeCol
for shapes that have both fill and stroke colour
TimeSeries utilities
SVG utilities
Create the SVG header
:: Fractional a | |
=> Frame a | Initial frame |
-> Frame a | Final frame |
-> Bool | Flip L-R in [0,1] x [0,1] |
-> Point a | Point in the initial frame |
-> Point a |
Move point to the SVG frame of reference (for which the origing is a the top-left corner of the screen)
toSvgFrameLP :: Fractional a => Frame a -> Frame a -> Bool -> LabeledPoint l a -> LabeledPoint l a Source #
Move LabeledPoint to the SVG frame of reference (uses toSvgFrame
)
Geometric types
Frame
A frame, i.e. a bounding box for objects
Point, LabeledPoint
A Point
object defines a point in the plane
data LabeledPoint l a Source #
A LabeledPoint
carries a "label" (i.e. any additional information such as a text tag, or any other data structure), in addition to position information. Data points on a plot are LabeledPoint
s.
LabeledPoint | |
|
labelPoint :: (Point a -> l) -> Point a -> LabeledPoint l a Source #
Given a labelling function and a Point
p
, returned a LabeledPoint
containing p
and the computed label
mapLabel :: (l1 -> l2) -> LabeledPoint l1 a -> LabeledPoint l2 a Source #
Apply a function to the label
Axis
Helpers
A list of nx
by ny
points in the plane arranged on the vertices of a rectangular mesh.
NB: Only the minimum x, y coordinate point is included in the output mesh. This is intentional, since the output from this can be used as an input to functions that use a corner rather than the center point as refernce (e.g. rect
)
Misc.
toFloat :: Scientific -> Float Source #
Convert a floating point value in Scientific
form to Float
wholeDecimal :: (Integral a, RealFrac b) => b -> (a, b) Source #
Separate whole and decimal part of a fractional number e.g.
> wholeDecimal pi (3,0.14159265358979312)
