Converts an image from one color space to another

The function converts an input image from one color space to another. In case of a transformation to-from RGB color space, the order of the channels should be specified explicitly (RGB or BGR). Note that the default color format in OpenCV is often referred to as RGB but it is actually BGR (the bytes are reversed). So the first byte in a standard (24-bit) color image will be an 8-bit Blue component, the second byte will be Green, and the third byte will be Red. The fourth, fifth, and sixth bytes would then be the second pixel (Blue, then Green, then Red), and so on.

The conventional ranges for R, G, and B channel values are:

• 0 to 255 for Word8 images
• 0 to 65535 for Word16 images
• 0 to 1 for Float images

In case of linear transformations, the range does not matter. But in case of a non-linear transformation, an input RGB image should be normalized to the proper value range to get the correct results, for example, for RGB to L*u*v* transformation. For example, if you have a 32-bit floating-point image directly converted from an 8-bit image without any scaling, then it will have the 0..255 value range instead of 0..1 assumed by the function. So, before calling cvtColor, you need first to scale the image down:

 cvtColor (img * 1/255) 'ColorConvBGR2Luv'

If you use cvtColor with 8-bit images, the conversion will have some information lost. For many applications, this will not be noticeable but it is recommended to use 32-bit images in applications that need the full range of colors or that convert an image before an operation and then convert back.

If conversion adds the alpha channel, its value will set to the maximum of corresponding channel range: 255 for Word8, 65535 for Word16, 1 for Float.

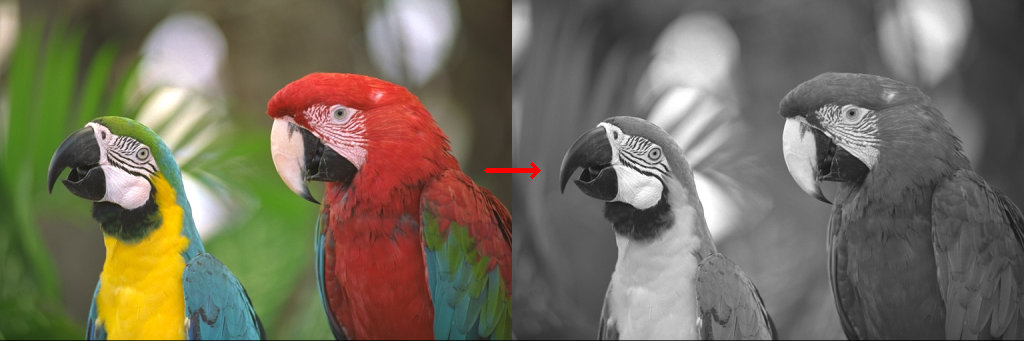

Example:

cvtColorImg
    :: forall (width    :: Nat)
              (width2   :: Nat)
              (height   :: Nat)
              (channels :: Nat)
              (depth    :: *)
     . ( Mat (ShapeT [height, width]) ('S channels) ('S depth) ~ Birds_512x341
       , width2 ~ (width + width)
       )
    => Mat (ShapeT [height, width2]) ('S channels) ('S depth)
cvtColorImg = exceptError $
    withMatM ((Proxy :: Proxy height) ::: (Proxy :: Proxy width2) ::: Z)
             (Proxy :: Proxy channels)
             (Proxy :: Proxy depth)
             white $ \imgM -> do
      birds_gray <- pureExcept $   cvtColor gray bgr
                               =<< cvtColor bgr gray birds_512x341
      matCopyToM imgM (V2 0 0) birds_512x341 Nothing
      matCopyToM imgM (V2 w 0) birds_gray    Nothing
      lift $ arrowedLine imgM (V2 startX midY) (V2 pointX midY) red 4 LineType_8 0 0.15
  where
    h, w :: Int32
    h = fromInteger $ natVal (Proxy :: Proxy height)
    w = fromInteger $ natVal (Proxy :: Proxy width)

    startX, pointX :: Int32
    startX = round $ fromIntegral w * (0.95 :: Double)
    pointX = round $ fromIntegral w * (1.05 :: Double)
    midY = h `div` 2

OpenCV Sphinx Doc

The function floodFill fills a connected component starting from the seed point with the specified color.

The connectivity is determined by the color/brightness closeness of the neighbor pixels. See the OpenCV documentation for details on the algorithm.

Example:

floodFillImg
    :: forall (width    :: Nat)
              (width2   :: Nat)
              (height   :: Nat)
              (channels :: Nat)
              (depth    :: *)
     . ( Mat (ShapeT [height, width]) ('S channels) ('S depth) ~ Sailboat_768x512
       , width2 ~ (width + width)
       )
    => Mat (ShapeT [height, width2]) ('S channels) ('S depth)
floodFillImg = exceptError $
    withMatM ((Proxy :: Proxy height) ::: (Proxy :: Proxy width2) ::: Z)
             (Proxy :: Proxy channels)
             (Proxy :: Proxy depth)
             white $ \imgM -> do
      sailboatEvening_768x512 <- thaw sailboat_768x512
      mask <- mkMatM (Proxy :: Proxy [height + 2, width + 2])
                     (Proxy :: Proxy 1)
                     (Proxy :: Proxy Word8)
                     black
      circle mask (V2 450 120 :: V2 Int32) 45 white (-1) LineType_AA 0
      rect <- floodFill sailboatEvening_768x512 (Just mask) seedPoint eveningRed (Just tolerance) (Just tolerance) defaultFloodFillOperationFlags
      rectangle sailboatEvening_768x512 rect blue 2 LineType_8 0
      frozenSailboatEvening_768x512 <- freeze sailboatEvening_768x512
      matCopyToM imgM (V2 0 0) sailboat_768x512 Nothing
      matCopyToM imgM (V2 w 0) frozenSailboatEvening_768x512 Nothing
      lift $ arrowedLine imgM (V2 startX midY) (V2 pointX midY) red 4 LineType_8 0 0.15
  where
    h, w :: Int32
    h = fromInteger $ natVal (Proxy :: Proxy height)
    w = fromInteger $ natVal (Proxy :: Proxy width)

    startX, pointX :: Int32
    startX = round $ fromIntegral w * (0.95 :: Double)
    pointX = round $ fromIntegral w * (1.05 :: Double)

    midY = h `div` 2

    seedPoint :: V2 Int32
    seedPoint = V2 100 50

    eveningRed :: V4 Double
    eveningRed = V4 0 100 200 255

    tolerance :: V4 Double
    tolerance = pure 7

OpenCV Sphinx Doc

Applies a fixed-level threshold to each array element

The function applies fixed-level thresholding to a single-channel array. The function is typically used to get a bi-level (binary) image out of a grayscale image or for removing a noise, that is, filtering out pixels with too small or too large values. There are several types of thresholding supported by the function.

Example:

grayBirds :: Mat (ShapeT [341, 512]) ('S 1) ('S Word8)
grayBirds = exceptError $ cvtColor bgr gray birds_512x341

threshBinaryBirds :: Mat (ShapeT [341, 512]) ('S 3) ('S Word8)
threshBinaryBirds =
    exceptError $ cvtColor gray bgr $ fst $ exceptError $
    threshold (ThreshVal_Abs 100) (Thresh_Binary 150) grayBirds

threshBinaryInvBirds :: Mat (ShapeT [341, 512]) ('S 3) ('S Word8)
threshBinaryInvBirds =
    exceptError $ cvtColor gray bgr $ fst $ exceptError $
    threshold (ThreshVal_Abs 100) (Thresh_BinaryInv 150) grayBirds

threshTruncateBirds :: Mat (ShapeT [341, 512]) ('S 3) ('S Word8)
threshTruncateBirds =
    exceptError $ cvtColor gray bgr $ fst $ exceptError $
    threshold (ThreshVal_Abs 100) Thresh_Truncate grayBirds

threshToZeroBirds :: Mat (ShapeT [341, 512]) ('S 3) ('S Word8)
threshToZeroBirds =
    exceptError $ cvtColor gray bgr $ fst $ exceptError $
    threshold (ThreshVal_Abs 100) Thresh_ToZero grayBirds

threshToZeroInvBirds :: Mat (ShapeT [341, 512]) ('S 3) ('S Word8)
threshToZeroInvBirds =
    exceptError $ cvtColor gray bgr $ fst $ exceptError $
    threshold (ThreshVal_Abs 100) Thresh_ToZeroInv grayBirds

OpenCV Sphinx doc

Performs a marker-based image segmentation using the watershed algorithm.

The function implements one of the variants of watershed, non-parametric marker-based segmentation algorithm, described in [Meyer, F. Color Image Segmentation, ICIP92, 1992].

Before passing the image to the function, you have to roughly outline the desired regions in the image markers with positive (>0) indices. So, every region is represented as one or more connected components with the pixel values 1, 2, 3, and so on. Such markers can be retrieved from a binary mask using findContours and drawContours. The markers are “seeds” of the future image regions. All the other pixels in markers , whose relation to the outlined regions is not known and should be defined by the algorithm, should be set to 0’s. In the function output, each pixel in markers is set to a value of the “seed” components or to -1 at boundaries between the regions.

OpenCV Sphinx doc

Runs the GrabCut algorithm.

Example:

grabCutBird :: Birds_512x341
grabCutBird = exceptError $ do
    mask <- withMatM (Proxy :: Proxy [341, 512])
                     (Proxy :: Proxy 1)
                     (Proxy :: Proxy Word8)
                     black $ \mask -> do
      fgTmp <- mkMatM (Proxy :: Proxy [1, 65]) (Proxy :: Proxy 1) (Proxy :: Proxy Double) black
      bgTmp <- mkMatM (Proxy :: Proxy [1, 65]) (Proxy :: Proxy 1) (Proxy :: Proxy Double) black
      grabCut birds_512x341 mask fgTmp bgTmp 5 (GrabCut_InitWithRect rect)
    mask' <- matScalarCompare mask 3 Cmp_Ge
    withMatM (Proxy :: Proxy [341, 512])
             (Proxy :: Proxy 3)
             (Proxy :: Proxy Word8)
             transparent $ \imgM -> do
      matCopyToM imgM (V2 0 0) birds_512x341 (Just mask')
  where
    rect :: Rect Int32
    rect = toRect $ HRect { hRectTopLeft = V2 264 60, hRectSize = V2 248 281 }

Returns 0 if the pixels are not in the range, 255 otherwise.
